What Is a Hypar Shade Structure?

A hypar shade structure uses a tensioned fabric membrane stretched into a hyperbolic paraboloid shape — a smooth, doubly curved surface created by setting opposite corners of the fabric at different heights. The result is a twisted saddle form where the fabric curves upward in one direction and downward in the perpendicular direction simultaneously. This geometry is not just aesthetic — it is what gives the structure its mechanical advantage.

Hypar structures are available in two primary configurations:

• Single-post hypar — A single central steel column supports a twisted fabric canopy, with the membrane’s edges anchored to perimeter cables or a lightweight frame. This format minimizes the ground-level footprint, making it ideal for tight spaces, individual seating clusters, or sites where multiple posts would create obstructions. Single-post hypars typically cover areas ranging from roughly 10 by 10 feet up to 16 by 16 feet or more.

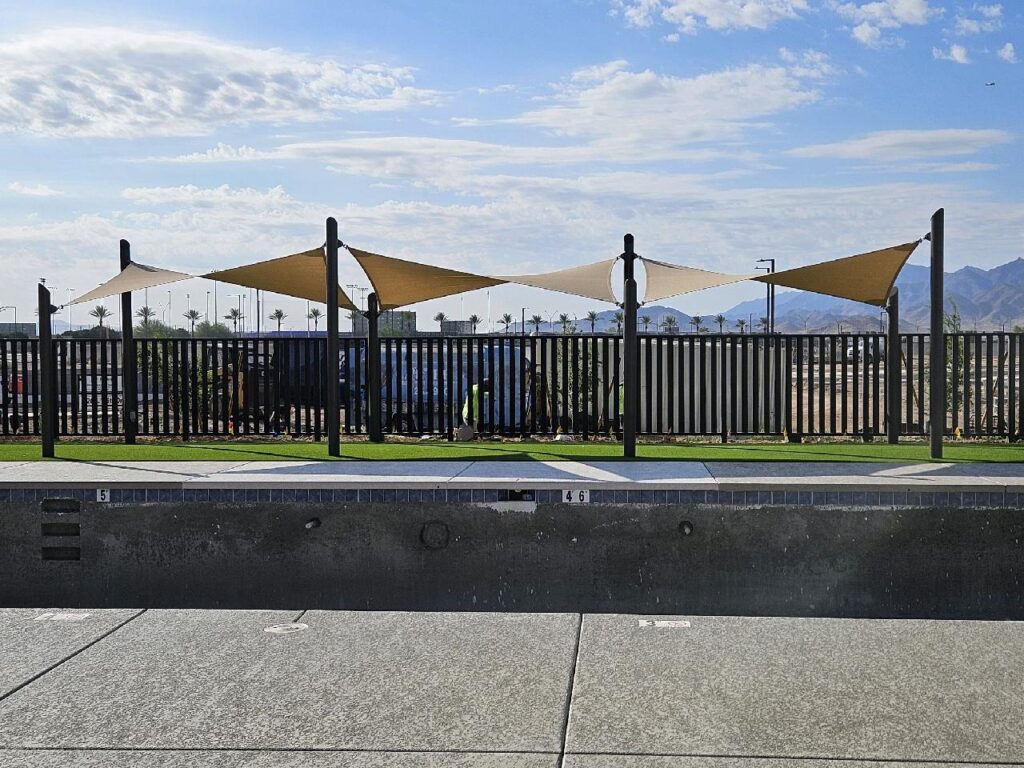

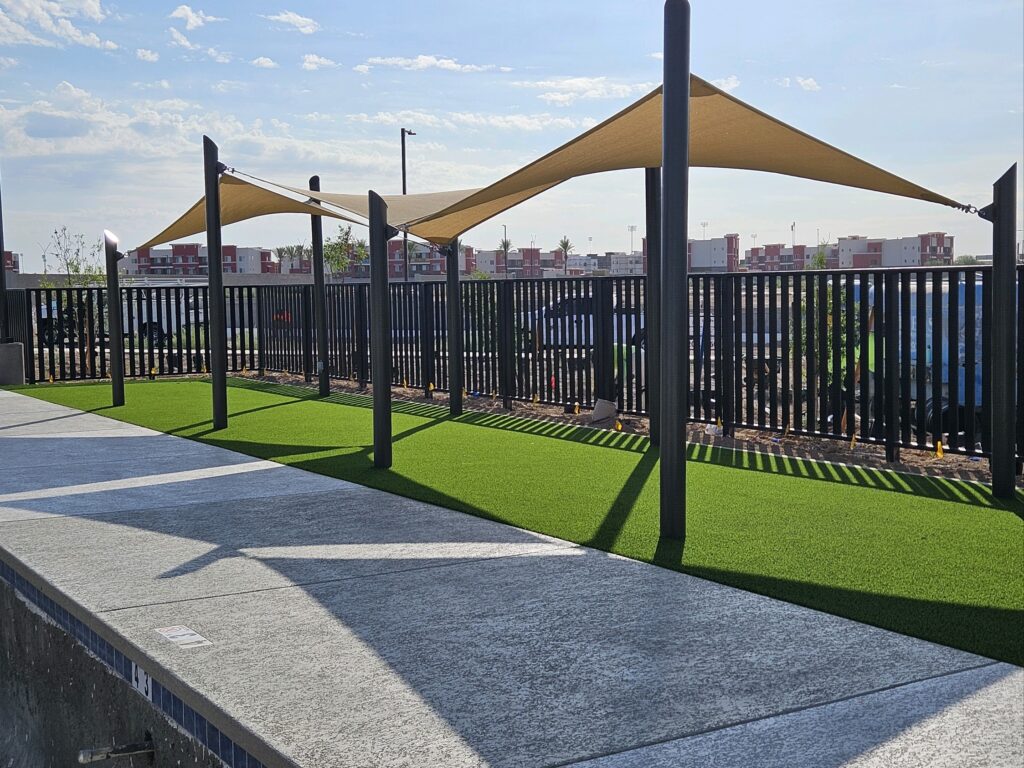

• Four-point hypar sail — A larger membrane stretched between four steel columns with alternating high and low corners. This configuration covers broader areas — spans of 20 to 40 feet or more — and can be joined in multi-sail arrays to shade entire plazas, parking zones, or recreation areas. This format is closely related to our 4-point tensioned fabric sails, with the hypar twist being the defining geometric feature.

The twisted geometry accomplishes three things that flat or simply sloped canopies cannot: it creates balanced biaxial tension across the entire membrane (eliminating sag and flutter), it sheds rainwater and debris naturally toward the low points (preventing ponding), and it distributes wind forces across a curved surface rather than catching them like a flat panel.

Why Choose a Hypar Over Other Shade Structures?

Every shade structure type has strengths. The hypar excels where aesthetics, structural efficiency, and site constraints intersect:

• Architectural presence — The twisted plane is inherently sculptural. Schools, resorts, restaurants, retail centers, and corporate campuses use hypars as design features that elevate the look of a property, not just functional add-ons bolted to a parking lot. A well-placed hypar becomes a landmark, not an afterthought.
• Structural efficiency through geometry — The doubly curved surface distributes loads more evenly than flat membranes, allowing the hypar to achieve effective shade coverage with less steel and lighter foundations than you might expect for the span. The geometry does the structural work.
• Tight-space versatility — Single-post hypars shade meaningful areas while occupying just one footing location on the ground. For courtyards, walkway intersections, and cluttered sites where multiple posts are impractical, this is a decisive advantage.
• Modular scalability — Multiple hypars can be overlapped at varying heights and angles to cover large areas while creating layered visual effects and dynamic shadow patterns. Each sail operates independently, so a single damaged panel can be replaced without affecting the rest of the array.
• Superior water and debris shedding — The saddle shape channels rainwater toward the low corners instead of pooling in the center. In Arizona’s monsoon season, this is not a minor detail — ponded water on a flat membrane can overload the fabric and hardware catastrophically.
• Energy and comfort impact — Shading hardscapes and building facades reduces surface temperatures and reflected heat, lowering air conditioning loads on adjacent buildings and extending the usable hours of outdoor spaces. For restaurants, retail, and hospitality venues, this translates directly to longer dwell times and higher revenue.

For projects that need rectangular coverage without the twisted geometry, see our hip shade structures and MAX Hip structures. For column-free shade over parking and bleachers, see our flat cantilevered structures.

UV Protection and Public Health

The Centers for Disease Control and Prevention (CDC) recommends shade structures as a primary defense against ultraviolet radiation. The CDC advises schools and parks to install shade over playgrounds, athletic areas, and outdoor gathering spaces — especially for children, who accumulate most of their lifetime sun exposure before age 18.

The U.S. Environmental Protection Agency (EPA) reports that one in five Americans will develop skin cancer, with unprotected UV exposure being the most preventable risk factor. The EPA advises seeking shade during peak UV hours between 10 a.m. and 4 p.m. — the same hours when outdoor dining, recreation, and commercial activity peak in Arizona.

For employers, OSHA’s Water-Rest-Shade guidelines identify shade as a core element of heat illness prevention for outdoor workers. A hypar over a break area, loading zone, or outdoor work station provides the cool recovery space OSHA recommends, while the breathable HDPE fabric allows hot air to escape upward rather than trapping it beneath the canopy.

In Arizona, where summer surface temperatures on exposed concrete routinely exceed 160 degrees F, shade structures do not just protect skin — they determine whether an outdoor space is usable during the months that matter most for commercial operations.

Common Applications

The hypar’s combination of visual impact, structural efficiency, and configurable coverage makes it a strong fit for a wide range of commercial installations:

• Playgrounds, schools, and parks — Single-post and multi-sail hypars shade play equipment, outdoor classrooms, and gathering areas while adding a dynamic visual element that children and communities respond to.
• Pools, splash pads, and aquatic centers — Breathable HDPE fabric sheds water while allowing airflow, keeping deck areas cool without the condensation issues solid roofs create over wet environments.

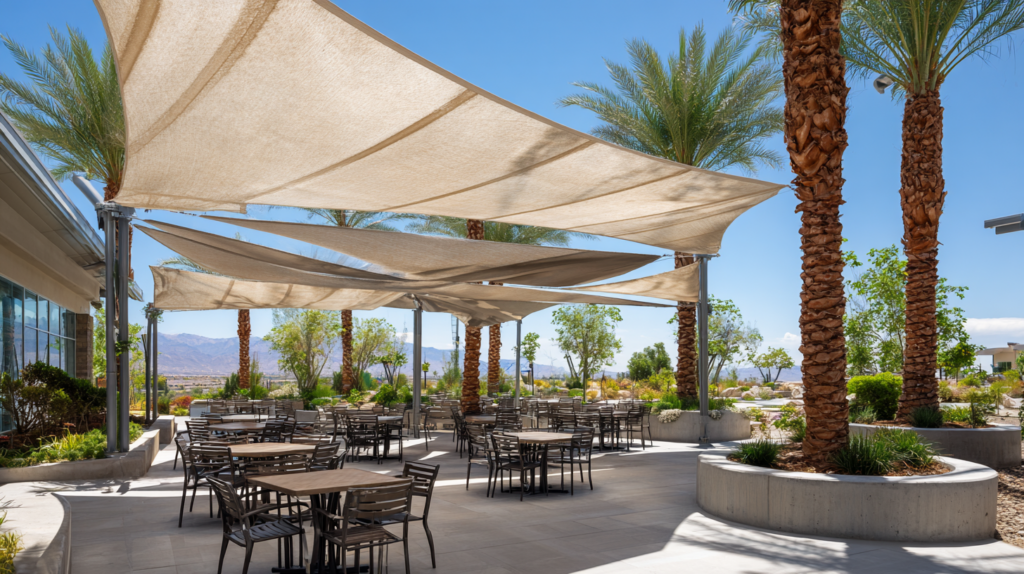

• Outdoor dining and hospitality venues — Restaurants, resorts, wineries, and breweries use hypar sails to create inviting, architecturally distinctive outdoor spaces that extend usable seasons and improve guest experience.
• Retail centers, shopping malls, and campus courtyards — Hypar arrays shade pedestrian circulation zones, rest areas, and outdoor seating while enhancing property aesthetics and contributing to sustainability goals through reduced heat island effect.
• Corporate campuses and break areas — Shading employee outdoor spaces with a structure that reflects brand quality and design sensibility.

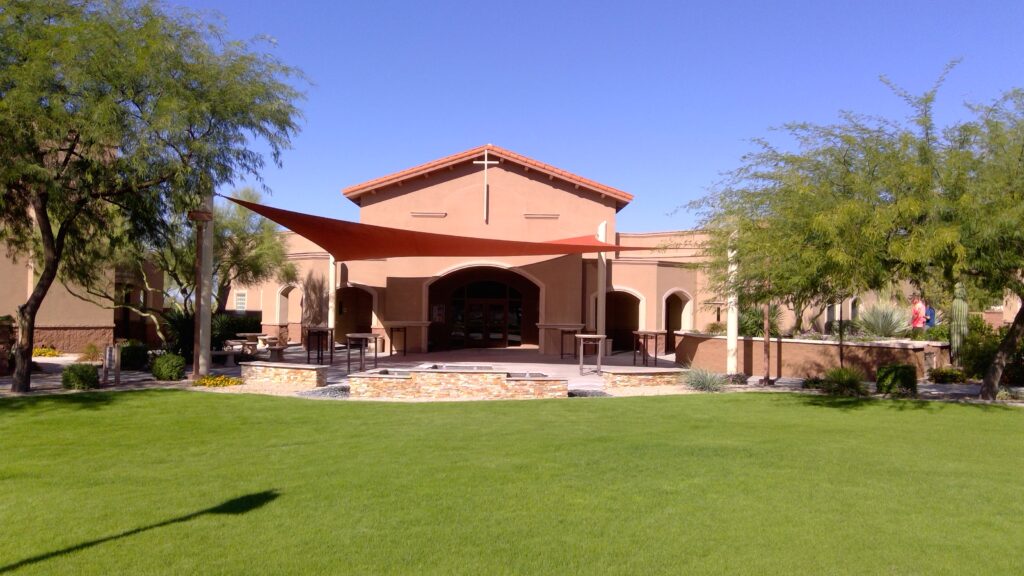

• Churches, HOA amenities, and community facilities — Covering gathering spaces, event areas, and children’s zones with visually distinctive shade that elevates the property.
• Theme parks and entertainment venues — Queue lines, concession areas, and spectator zones benefit from multi-hypar arrays that follow curved or irregular paths with layered coverage.

Browse completed hypar installations in our project gallery.

Materials and Construction

Steel Framework

Every Total Shade hypar is built on a steel frame fabricated in our Phoenix facility. Single-post hypars use a central steel column with a welded top plate and perimeter cable or frame assembly. Four-point hypar sails use individual columns at each corner. In both cases, the steel is sized by our engineering team to handle the specific tension, wind, and seismic loads of each project — not pulled from a standard catalog.

After fabrication, all steel components are powder coated to a minimum of 3 mil thickness, creating a hard, corrosion-resistant finish that withstands decades of Arizona sun, monsoon rain, and temperature swings. We offer over 25 standard powder coat colors with custom color matching available, so your structure coordinates with school colors, corporate branding, or the surrounding architecture.

Shade Fabric

Our primary fabric for hypar structures is Commercial 340/95, a high-density knitted HDPE shade cloth that delivers up to 96% UV block while remaining fully permeable to air. The breathable weave allows hot air to escape upward — critical in Arizona, where solid canopies can create heat pockets nearly as uncomfortable as full sun. The permeable weave also sheds roughly 60-70% of rainfall while significantly reducing wind uplift compared to waterproof membranes.

Commercial 340/95 is available in three configurations:

• Standard weight — The go-to option for most playground, park, dining, and courtyard applications.
• Heavy weight — For sites with higher wind exposure or where extra durability is required.
• FR (Fire Resistant) — Certified to CSFM 1237.1 and NFPA 701 for installations near buildings or where fire codes mandate flame-retardant materials.

We also work with Polyfab, Alnet, and Serge Ferrari fabric lines for projects requiring specialized UV performance, fire ratings, or color options. All of our HDPE shade fabrics are 100% lead-free, phthalate-free, and backed by manufacturer UV degradation warranties of 10 to 15 years.

If your existing hypar structure has worn or storm-damaged fabric, our in-house sewing team can fabricate a replacement membrane cut to fit your current frame and hardware.

Hardware and Tensioning

The hypar’s performance depends entirely on achieving and maintaining correct tension across the membrane. Every connection uses marine-grade stainless steel or hot-dip galvanized hardware — forged shackles, heavy-duty turnbuckles, and fabricated mounting plates rated for the specific loads of each sail. Turnbuckles at each attachment point allow precise tensioning during installation and periodic re-tensioning as the HDPE naturally relaxes over its first season of service.

Some hypar systems include rapid-release hardware that allows the fabric to be removed quickly ahead of extreme wind events, for seasonal storage, or for maintenance access. We specify this option where site conditions or client operations require it.

Engineering, Codes, and Permitting

A commercial hypar is an engineered structure subject to building codes. In Arizona, shade structures must meet or exceed the International Building Code (IBC) with wind loads calculated per ASCE 7 and any local amendments. Design wind speeds in the Phoenix metro area typically range from 90 to 115 mph depending on jurisdiction and risk category.

Total Shade provides sealed structural engineering drawings prepared by licensed engineers for every commercial hypar project. Our engineering package includes:

• Site-specific wind and seismic load calculations based on your project’s location, exposure category, and governing building code
• Footing and anchor designs sized for actual soil conditions at your site — hypar footings must resist both downward gravity loads and the outward-pulling tension forces generated by the membrane
• Post sizing and geometry specifications documenting column dimensions, wall thickness, and the precise corner heights that create the correct hypar curvature
• Tension hardware and connection details documenting the rated capacity of every shackle, turnbuckle, cable, and mounting plate
• Complete permit-ready documentation formatted for submission to your local building department

Many Arizona municipalities require permits for fixed shade structures. We navigate the permitting process as part of every project, including coordination with building officials on setback, height, and zoning requirements.

Design Considerations for Arizona’s Climate

The hypar’s geometry gives it inherent advantages in desert conditions, but the design still must account for Arizona-specific factors:

• The twisted shape is a performance feature, not just an aesthetic one — In Arizona, flat membranes pool water during monsoon downpours and sag under the weight. The hypar’s saddle geometry channels water to the low corners automatically. The biaxial tension eliminates the flutter and flapping that destroy flat sails in gusty conditions.
• Sun path and shadow optimization — The hypar casts a complex, shifting shadow pattern throughout the day. We model the shadow footprint at critical times (late morning through late afternoon in summer) to ensure the shaded zone covers the areas people actually use, not just the geometric footprint of the membrane.
• Multi-sail arrays for large areas — Overlapping hypar sails at different heights and rotations provides more effective coverage than a single large membrane, improves wind performance by reducing individual sail area, and creates the layered visual depth that makes hypar installations so architecturally compelling.
• Height variation and airflow — Adequate height difference between the high and low corners ensures proper drainage, generates the correct curvature for structural stability, and creates the upward airflow path that makes the space beneath the sail feel meaningfully cooler than the ambient temperature.
• Fabric and hardware longevity — Arizona’s UV intensity and temperature extremes accelerate degradation of lesser materials. Commercial-grade HDPE, stainless hardware, and powder-coated steel are not upgrades — they are the baseline for structures expected to perform 15 to 25 years in this environment.

Site Planning and Layout

Getting the most visual impact and shade value from a hypar installation requires thoughtful site planning:

• Single-post vs. four-point configuration — Single-post hypars work best for individual shade zones, tight spaces, and accent features. Four-point hypar sails cover larger rectangular or irregular areas. The choice depends on coverage requirements, post placement constraints, and the visual effect you want to achieve.
• Column placement and circulation — Posts must work with pedestrian flow, vehicle access, ADA pathways, fire lanes, and any equipment or furnishings beneath the sails.
• Overlap and array planning — For multi-hypar installations, we design the overlap pattern to maximize coverage while maintaining the visual rhythm that makes hypar arrays distinctive. Shared intermediate columns between adjacent sails reduce post count and cost.
• Underground utilities — Post footings require excavation. We identify below-grade conflicts during design so locations can be adjusted before construction.
• Color coordination — Hypar installations can use a single fabric color for a unified look or multiple colors in an array for visual variety and branding impact. We help you select combinations that complement the site context.

Not sure which structure type fits your site? Explore our full range of shade products, including 3-point sails, umbrellas, ramadas, and custom designs.

Understanding Total Cost of Ownership

Commercial buyers should evaluate the full cost of ownership over a hypar’s expected 15 to 25 year lifespan, not just the upfront price. The hypar’s sculptural form requires precise engineering and fabrication, but the geometry’s structural efficiency often means lighter steel and smaller footings than you would expect for the span — partially offsetting the design complexity.

Cost Category	What It Includes	Why It Matters
Structure & Steel	Steel columns, top plates, perimeter cables or frame, powder coat finish	Single-post hypars use less steel than multi-post alternatives; four-point hypars scale with span
Fabric & Hardware	HDPE shade cloth cut to hypar pattern, edge reinforcement, stainless steel tensioning hardware	Fabric must be precision-cut for the twisted geometry; quality drives UV performance and replacement interval
Engineering & Permits	Sealed structural drawings, wind/seismic calculations, geometry specifications, permit fees	Hypar geometry requires precise engineering; required for code compliance and liability protection
Foundations	Concrete footings, anchor bolts, soil preparation	Footings must resist both gravity and outward tension forces; soil conditions affect sizing and cost
Installation	Post setting, hardware assembly, fabric tensioning by OSHA-certified crew	Achieving correct hypar curvature requires precise multi-point tensioning; improper tensioning voids the geometry’s benefits
Freight & Logistics	Delivery of fabricated steel and fabric to site	Distance from fabrication facility affects project cost
Ongoing Maintenance	Periodic re-tensioning, fabric cleaning, hardware inspection, steel touch-up over 15-25 years	Annual tension checks and mild detergent washing extend fabric life; neglected hardware leads to premature failure

What to Compare When Evaluating Proposals

If you are reviewing hypar shade proposals from multiple contractors, these questions separate a professional installation from one that will underperform:

Your Question	What You’re Really Comparing	Why It Matters
Does it look right?	Hypar curvature quality, fabric tension, visual form	A poorly tensioned hypar sags and wrinkles; the sculptural impact depends on precise geometry
Is it engineered?	Sealed drawings by a licensed engineer vs. generic catalog specs	Code compliance, permit approval, and storm performance
What steel and coatings?	Steel gauge, wall thickness, powder coat minimum thickness	Structural safety, corrosion resistance, and 15-25 year service life in Arizona conditions
What fabric and warranty?	Commercial HDPE with UV warranty vs. residential-grade cloth	UV-block performance, durability, and how often you will pay for replacement fabric
What hardware?	Marine-grade stainless rated for tension loads vs. off-the-shelf zinc-plated	Corrosion resistance and structural integrity over the life of the structure
Who installs it?	OSHA-certified crew with hypar tensioning experience vs. general labor	The hypar’s performance and appearance depend on precise multi-point tensioning; this is a specialized skill

Why Work with Total Shade LLC?

• 25+ years of tensioned fabric experience — We have designed and installed hypar shade structures for school districts, municipalities, HOAs, national brands including Six Flags and Amazon, and major general contractors across Arizona and the Southwest.
• In-house design, fabrication, and installation — Steel fabrication, powder coating, fabric cutting and sewing, and field installation are all done by our own teams from our Phoenix headquarters. No middlemen, no subcontractors.
• OSHA-certified installation crew — Hypar structures require precise rigging and multi-point tensioning to achieve the correct curvature. Our field team is trained and certified to the highest safety standards.
• Proudly made in the USA — All fabrication is domestic, ensuring quality control and shorter lead times.
• Full-service project management — From initial site evaluation through engineering, permitting, fabrication, delivery, installation, and final tensioning, we manage the entire timeline.

Read what our clients say on our testimonials page.

Get a Free Consultation for Your Hypar Shade Project

Whether you are planning a single-post hypar for a courtyard or a multi-sail array across an entire campus, Total Shade LLC is here to help. We will evaluate your site, discuss your coverage and aesthetic goals, walk you through fabric and color options, and provide a detailed proposal — all at no cost or obligation.
